LD 8 DQF & DQN Air Cargo Containers

LD 8 DQN

LD 8 DQN Air Cargo Container Image Gallery

Click any thumbnail image to the right to display the larger image in the LD 8 Air Cargo Container Image Gallery.
Product gallery

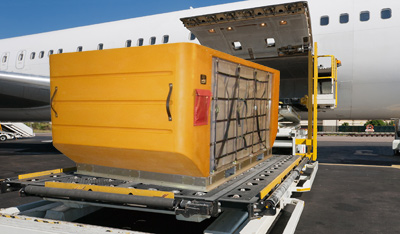

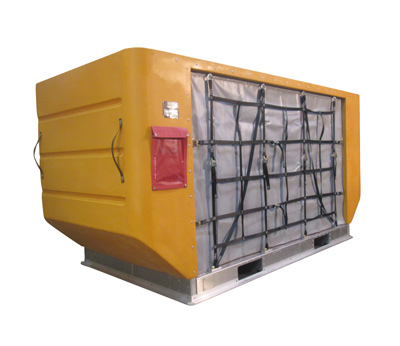

Granger Aerospace LD 8 DQN Air Cargo Container
  1. LD 8, LD-8, Granger LD 8, Granger Aerospace LD 8, Granger Aerospace ULD8

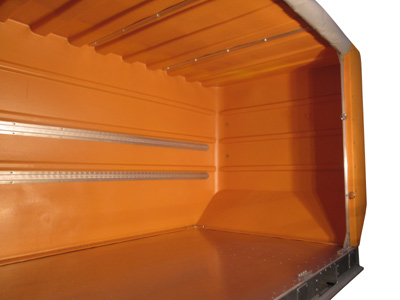

  2. Interior Of LD 8, Granger Aerospace LD 8

  3. Granger Aerospace LD 8, LD 8, Granger Aerospace Products, Air Cargo Container

  4. Air Cargo Containers, ULD 2, LD 2 Air Cargo, Granger Aerospace

LD 8 Features:

  • Granger Aerospace Products Air Cargo Containers are the only cargo container manufactured from a combination of aluminum and durable LLDPE.
  • The LD-8 Body is weld-able
  • The Granger Aerospace Products Air Cargo Container is lighter than most standard containers.
  • Granger Aerospace Products cargo containers are robust.
  • No aluminum body panels to patch.
  • No aluminum body frames to replace.
  • Lighter weight, less down time and lower repair costs equals lower cost of ownership.
  • Enhanced Threshold.
  • Fewer fasteners to replace.
  • Unique design allows for faster repairs.
  • Less spare parts to keep in stock.
  • Granger Aerospace Products offers alternative solutions for your ULD needs.
  • It is our goal to offer our customer not only lower cost container but a trusted partnership for your company.
  • It’s our goal to offer more choices to our customers
  • Through or focus on technology and research, we are continually making improvements to our design.
  • Our customers save fuel by using robust as well as cost-efficient lightweight containers.
    		•

    LD 8 DQN Technical Specifications

    Technical Specifications
    TSO   N/A
    IATA   LD-8/DQN
    SPEC.   AS 1677
    Granger Aerospace P/N   GA2-0108-3
    Base size 2438 mm x 1534 mm 96.0 in x 60.4 in
    Height 1625 mm 64 in
    Roof length 3175 mm 125 in
    Max. gross weight 2449 kg 5400 lb
    Internal volume 6.4 cu m 224.5 cu. ft
    External volume 7.5 cu m 265 cu ft
    Door opening 2254 mm x 1462 mm 88.75 in x 57.56 in
    Tare weight from 169.6 kg 374 lb

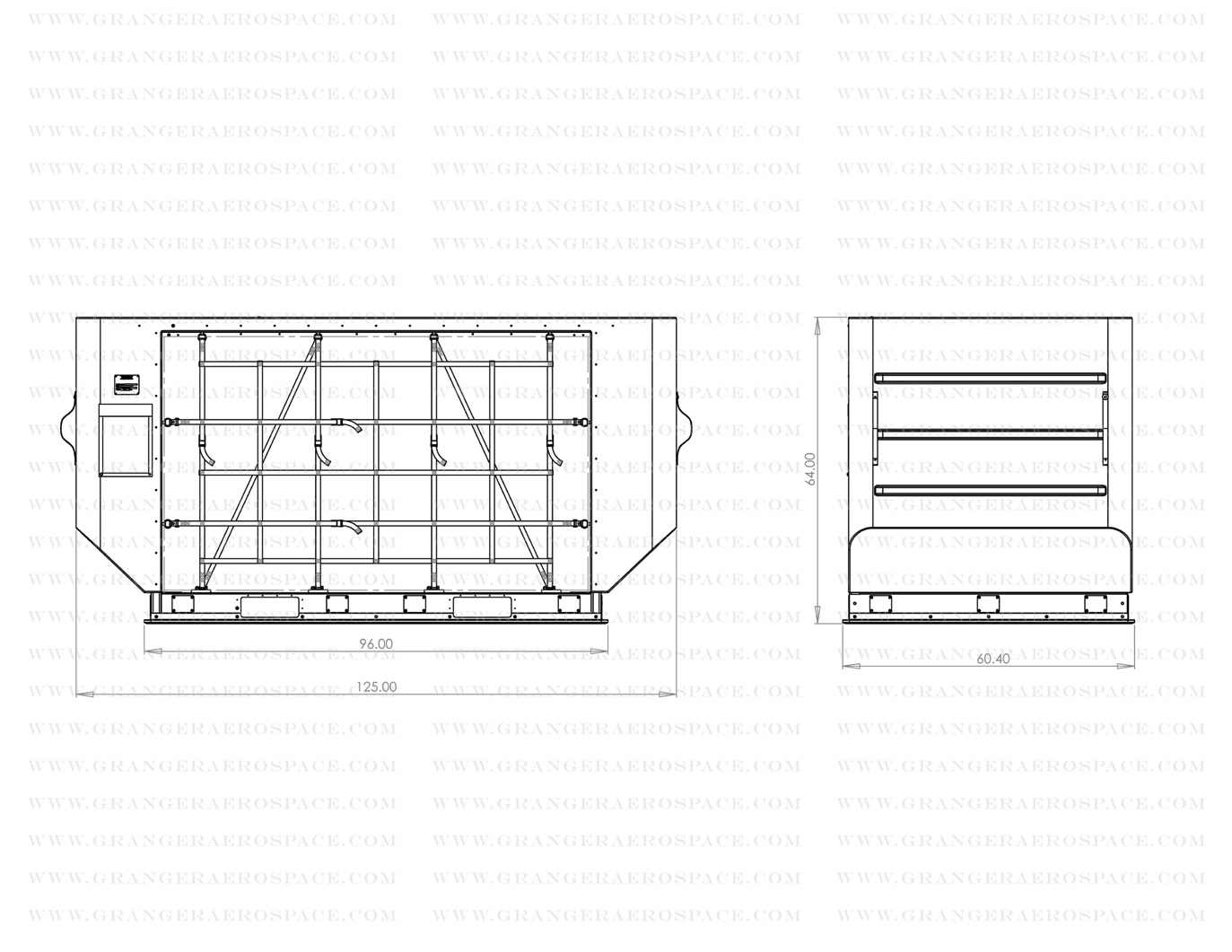

    LD 8 DQN Dimensional Drawings

    Click below to download LD 8 DQN Dimensional PDF
    LD 8 Dimensions, LD 8 Air Cargo Container Dimensions, DQN dimensions

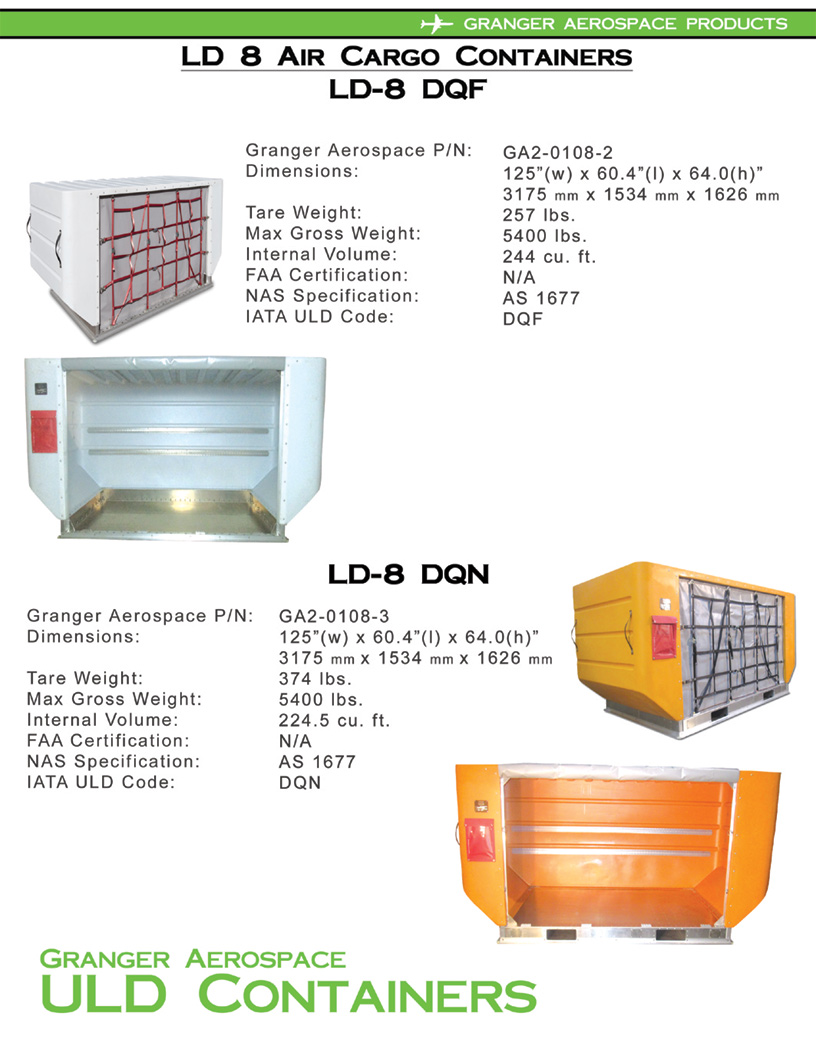

    LD 8 DQF/DQN Information

    Click below to download LD 8 DQN Technical PDF
    LD 8 Specifications, Dimensions, LD 8 Air Cargo Container Dimensions, DQF Dimensions, DQN dimensions

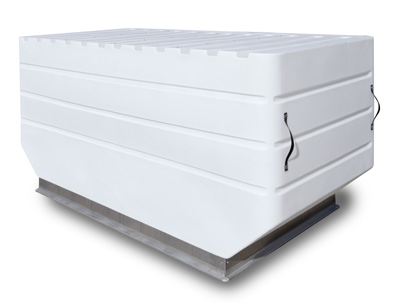

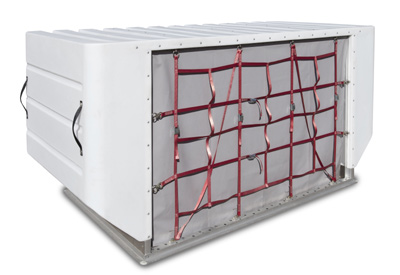

    LD 8 DQF

    LD 8 DQF Air Cargo Container Image Gallery

    Click any thumbnail image to the right to display the larger image in the LD 8 Air Cargo Container Image Gallery.
    Product gallery
    Granger Aerospace LD 8 DQN Air Cargo Container
    1. LD 8, LD-8, Granger LD 8, Granger Aerospace LD 8, Granger Aerospace ULD8

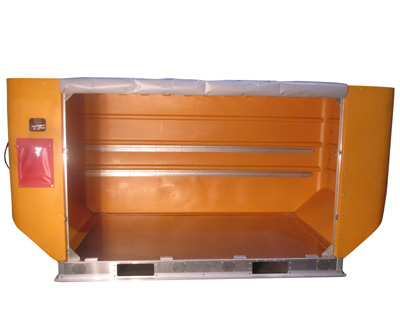

    2. Interior Of LD 8, Granger Aerospace LD 8

    3. Granger Aerospace LD 8, LD 8, Granger Aerospace Products, Air Cargo Container

    4. Air Cargo Containers, ULD 2, LD 2 Air Cargo, Granger Aerospace

    LD 8 Features:

  • Granger Aerospace Products Air Cargo Containers are the only cargo container manufactured from a combination of aluminum and durable LLDPE.
  • The LD-8 Body is weld-able
  • The Granger Aerospace Products Air Cargo Container is lighter than most standard containers.
  • Granger Aerospace Products cargo containers are robust.
  • No aluminum body panels to patch.
  • No aluminum body frames to replace.
  • Lighter weight, less down time and lower repair costs equals lower cost of ownership.
  • Enhanced Threshold.
  • Fewer fasteners to replace.
  • Unique design allows for faster repairs.
  • Less spare parts to keep in stock.
  • Granger Aerospace Products offers alternative solutions for your ULD needs.
  • It is our goal to offer our customer not only lower cost container but a trusted partnership for your company.
  • It’s our goal to offer more choices to our customers
  • Through or focus on technology and research, we are continually making improvements to our design.
  • Our customers save fuel by using robust as well as cost-efficient lightweight containers.
    		•

    LD 8 DQF Technical Specifications

    Technical Specifications
    TSO   N/A
    IATA   LD-8/DQF
    SPEC.   AS 1677
    Granger Aerospace P/N   GA2-0108-2
    Base size 2438 mm x 1534 mm 96.0 in x 60.4 in
    Height 1625 mm 64 in
    Roof length 3175 mm 125 in
    Max. gross weight 2449 kg 5400 lb
    Internal volume 6.9 cu m 244 cu. ft
    External volume 7.5 cu m 265 cu ft
    Door opening 2254 mm x 1462 mm 88.75 in x 57.56 in
    Tare weight from 116.5 kg 257 lb

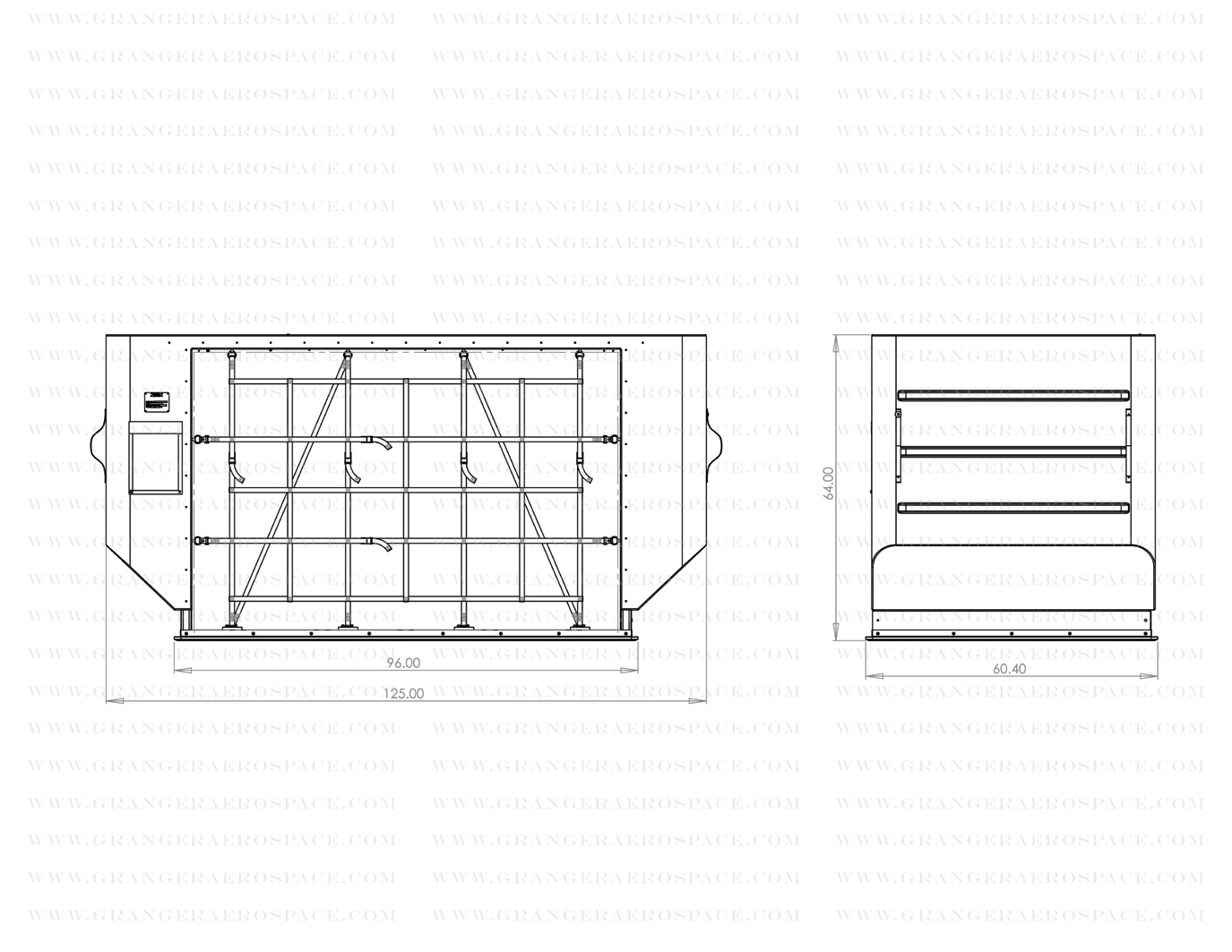

    LD 8 DQF Dimensional Drawings

    Click below to download LD 8 DQF Dimensional PDF
    LD 8 Dimensions, LD 8 Air Cargo Container Dimensions, DQF dimensions

    LD 8 DQF/DQN Information

    Click below to download LD 8 DQN Technical PDF
    LD 8 Specifications, Dimensions, LD 8 Air Cargo Container Dimensions, DQF Dimensions, DQN dimensions

    Single Piece Polymer Shell

    All Granger ULD Containers feature a single piece polymer shell that offers drastically reduced maintenance costs & occurences.

    Shells Available in Colors

    Companies can actively increase their efficiency in their operations and inventory control with color coordinated ULDs.

    Lightweight Aluminum Base for ULD Containers

    Lightweight Aluminum Base

    Granger Aerospace's high strength, lightweight aluminum base offers quality & durability with lighter tare weights.

    ULD Innovative Design Features

    Innovative Design Features

    Granger's ULDs offer the lowest total cost of ownership amongst comparable Air Cargo Containers with innovative design features.
