LD 3 AKE

LD 3 AKE Air Cargo Container Image Gallery

Click any of the thumbnail images to the right to display the larger image in the LD 3 Air Cargo Container Image Gallery.

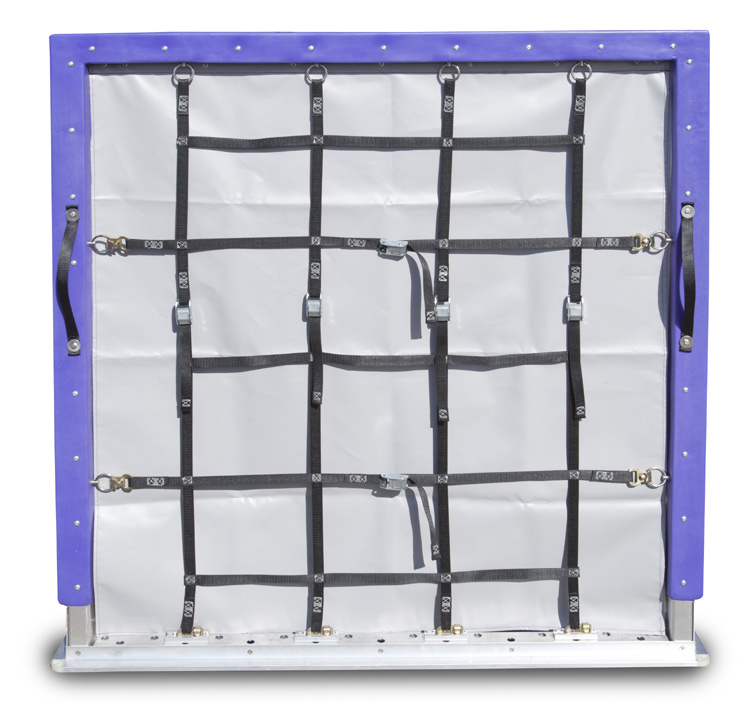

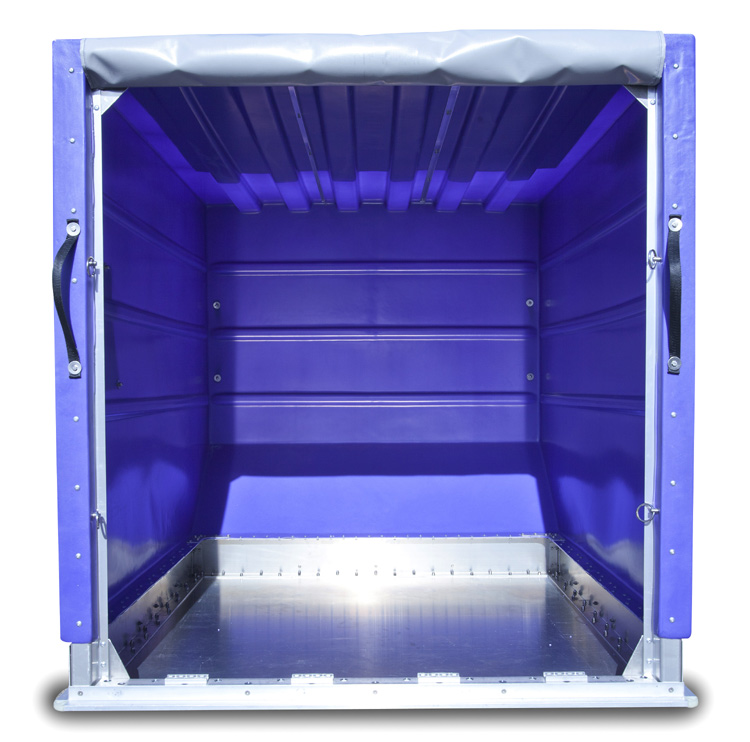

LD 3 AKE Air Cargo Container

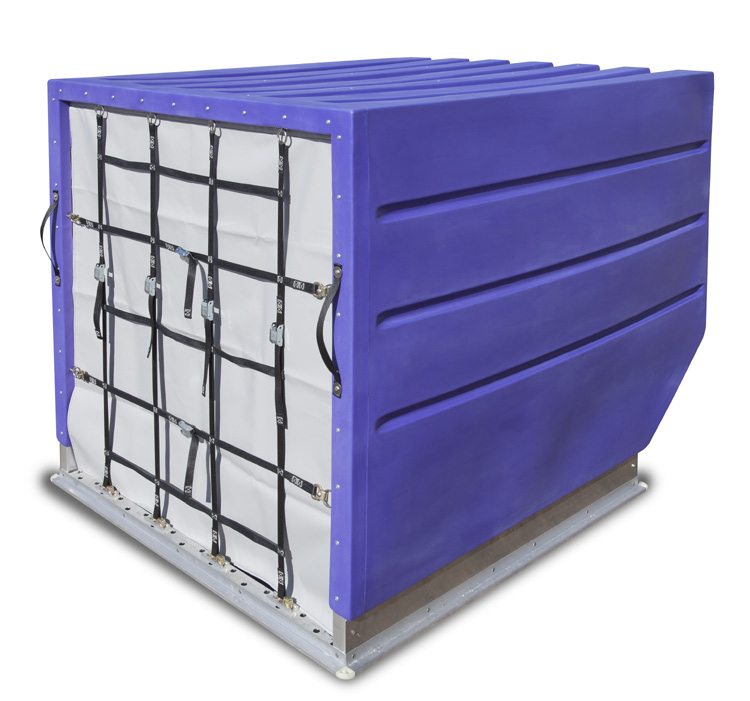

Granger Aerospace LD 3 AKE Air Cargo Container
  1. LD 3, Granger LD 3, Granger Aerospace LD 3, LD 3 AKE

  2. LD 3 AKE, LD 3, AKE Container, Granger Aerospace ld 3, Granger Plastics LD 3

  3. Granger Aerospace LD 3, LD 3, Granger LD 3 AKE

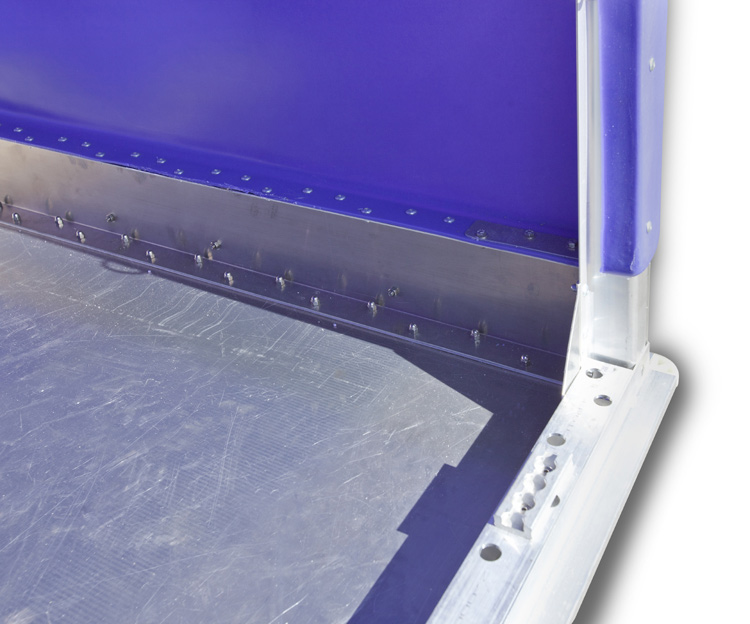

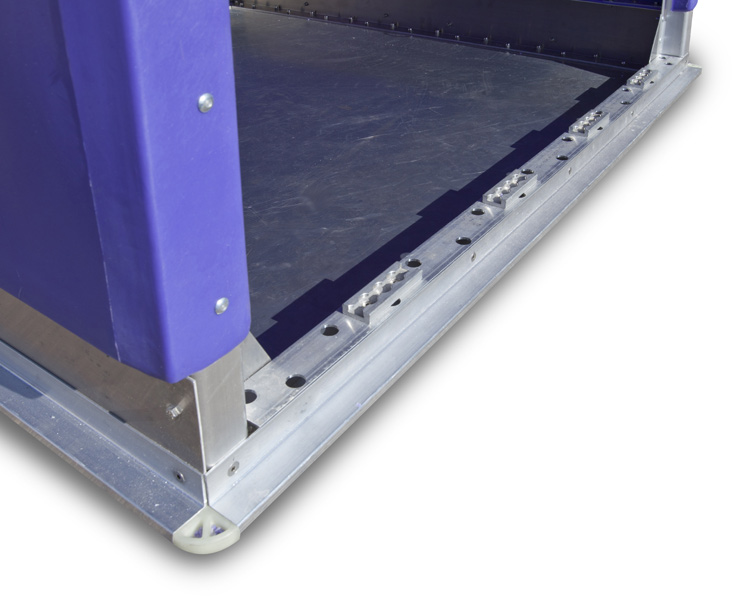

  4. LD 3 AKE Base, LD 3 Air Cargo Container, LD 3, AKE Container, AKE Air Cargo, Granger Aerospace LD 3 Base

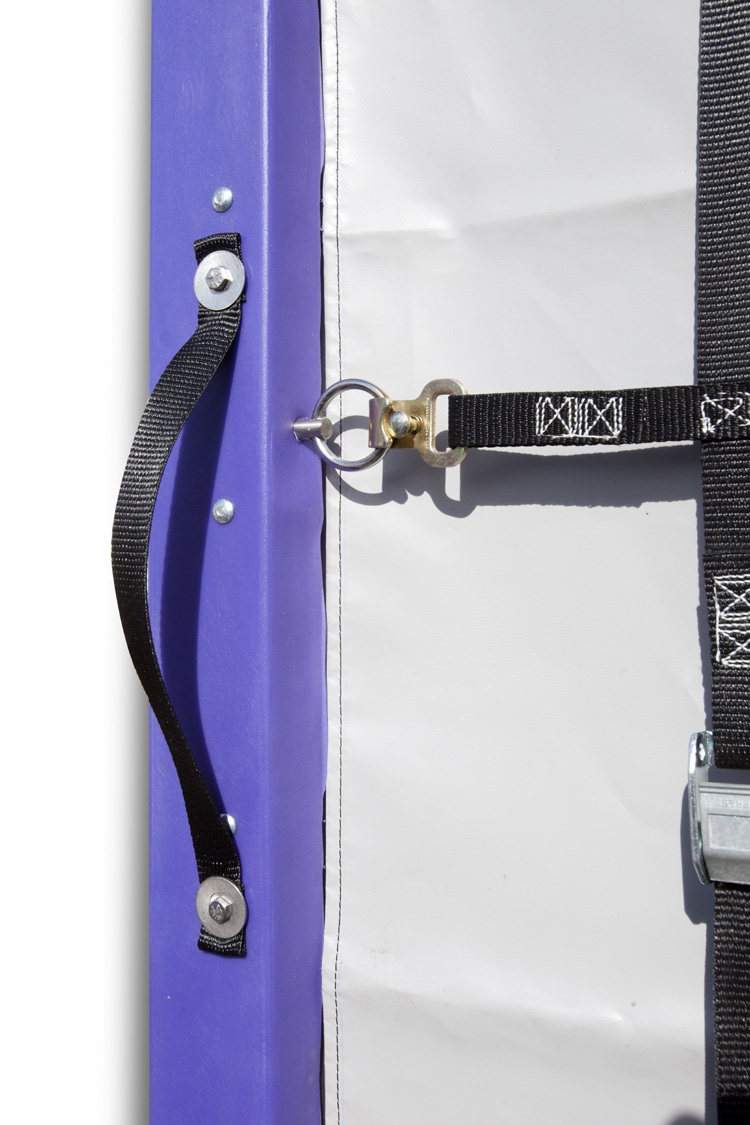

  5. LD 3 AKE Handle, LD 3 Air Cargo Container Handle, LD 3 Air Cargo Container, Granger Aerospace LD 3

  6. LD 3 Air Cargo Container, LD 3 ULD Container, Granger Aerospace LD 3 AKE

LD 3 Features:

  • Granger Aerospace Products Air Cargo Containers are the only cargo container manufactured from a combination of aluminum and durable LLDPE.
  • The LD-3 Body is weld-able
  • The Granger Aerospace Products Air Cargo Container is lighter than most standard containers.
  • Granger Aerospace Products cargo containers are robust.
  • No aluminum body panels to patch.
  • No aluminum body frames to replace.
  • Lighter weight, less down time and lower repair costs equals lower cost of ownership.
  • Enhanced Threshold.
  • Fewer fasteners to replace.
  • Unique design allows for faster repairs.
  • Less spare parts to keep in stock.
  • Granger Aerospace Products offers alternative solutions for your ULD needs.
  • It is our goal to offer our customer not only lower cost container but a trusted partnership for your company.
  • It’s our goal to offer more choices to our customers
  • Through or focus on technology and research, we are continually making improvements to our design.
  • Our customers save fuel by using robust as well as cost-efficient lightweight containers.
    		•

    LD 3 AKE Technical Specifications

    Technical Specifications
    IATA   C90d
    SAE AS 36100 class   LD-3/AKE
    Granger Aerospace P/N   NAS 3610 (2K2C)
    Base size 1534 x 2438 mm 61.5 in x 60.4 in
    Height 1625 mm 64.0 in
    Roof length 2438 mm 79.0 in
    Max. gross weight 2449 kg 3500 lb
    Internal volume 5.7 cu m 150 cu ft
    External volume 6.1 cu m 166 cu ft
    Door opening 2298 x 1532 mm 53.13 in x 57.75 in
    Tare weight from 84.8 kg 187 lb

    LD 3 AKE Air Cargo Container Ultimate Load Test

    Watch the video above and see the Granger Plastics Air Cargo Containers successfully complete the FAA's Ultimate Load Testing. Watch as the LD 3 Air Cargo Container completes the loaded test!

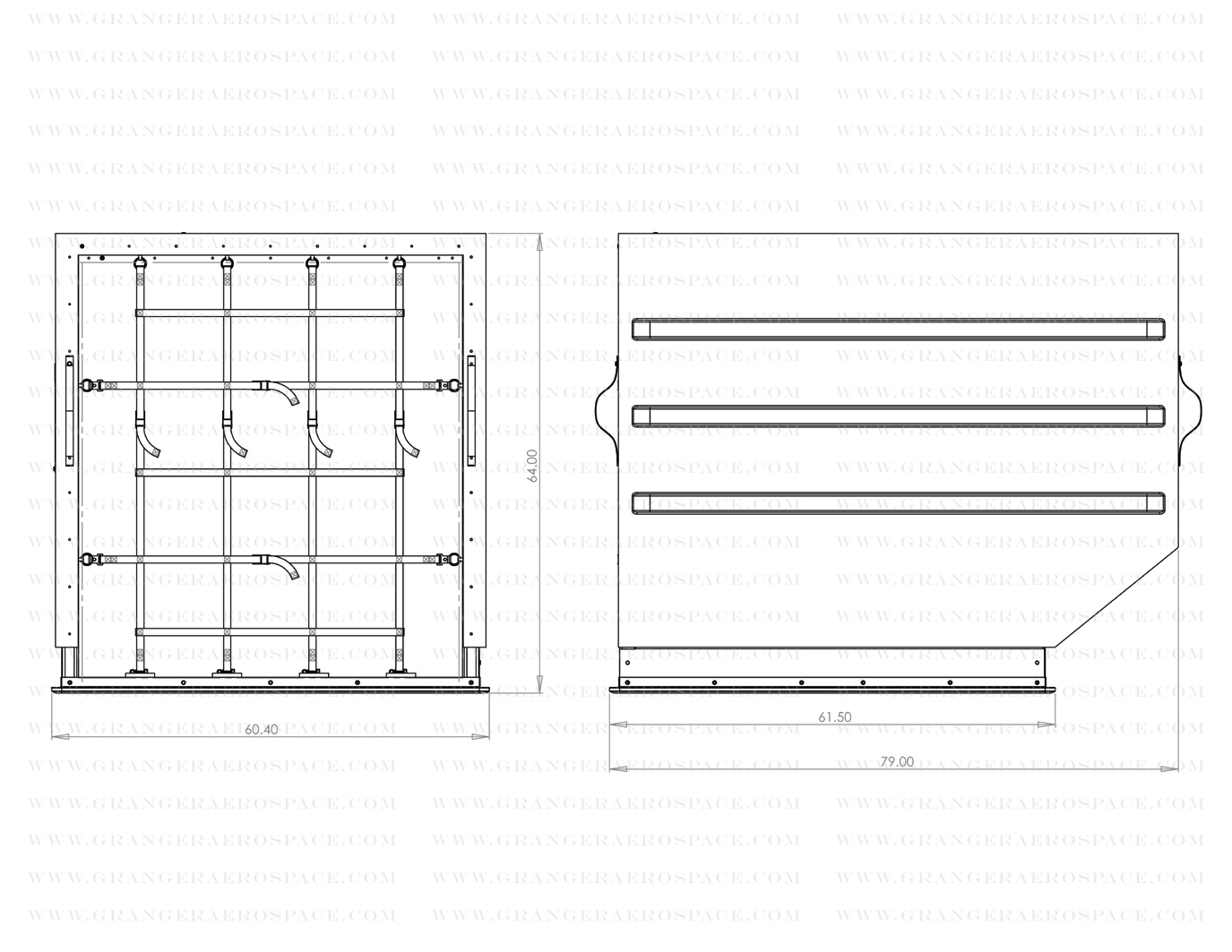

    LD 3 AKE Dimensional Drawings

    Click below to download LD 3 AKE Dimensional PDF
    LD 3 Dimensions, LD 3 Air Cargo Container Dimensions, AKE dimensions

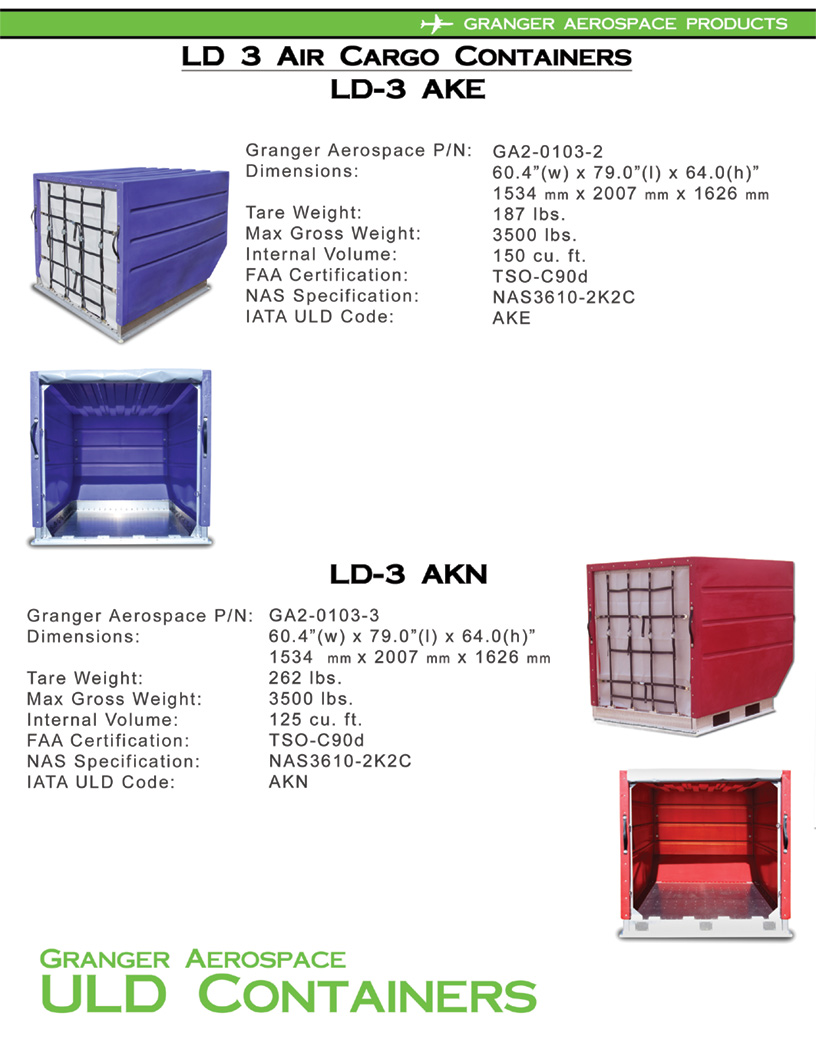

    LD 3 AKE/AKN Information

    Click below to download LD 3 AKE Technical PDF
    LD 3 Specifications, Dimensions, LD 3 Air Cargo Container Dimensions, AKE Dimensions, AKF dimensions

    LD 3 AKN

    LD 3 AKN Air Cargo Container Image Gallery

    Click on any of the thumbnail images to the right to display the larger image in the LD 2 Air Cargo Container Image Gallery.

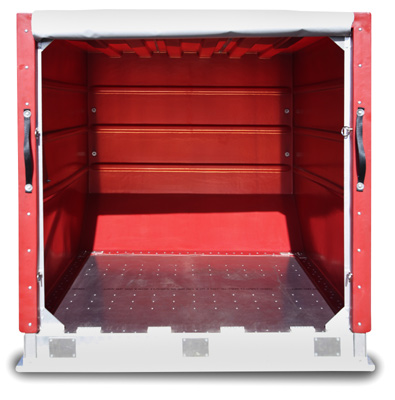

    LD 3 AKE Air Cargo Container

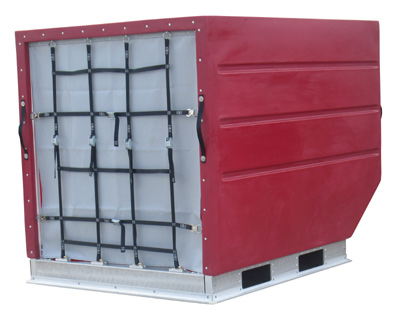

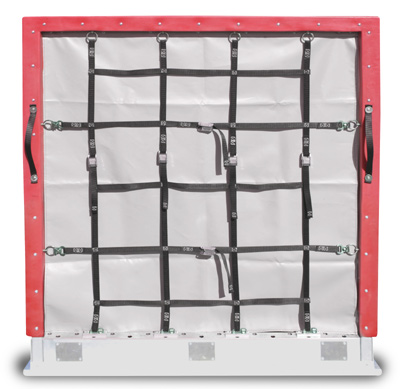

    Granger Aerospace LD 3 AKN Air Cargo Container
    1. LD 3, Granger LD 3, Granger Aerospace LD 3, LD 3 AKN, LD 3 Forkliftable
    2. LD 3 AKN, LD 3, AKN Container, Granger Aerospace ld 3, Granger Plastics LD 3
    3. Granger Aerospace LD 3, LD 3, Granger LD 3 AKN

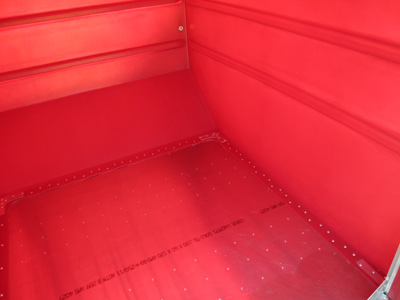

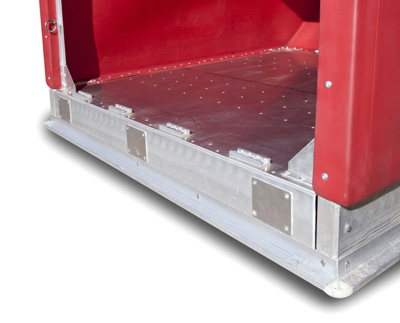

    4. LD 3 AKN Base, LD 3 Air Cargo Container, LD 3, AKN Container, AKN Air Cargo, Granger Aerospace LD 3 Base
    5. LD 3 AKN Handle, LD 3 Air Cargo Container Handle, LD 3 Air Cargo Container, Granger Aerospace LD 3

    LD 3 Features:

  • Granger Aerospace Products Air Cargo Containers are the only cargo container manufactured from a combination of aluminum and durable LLDPE.
  • The LD-3 Body is weld-able
  • The Granger Aerospace Products Air Cargo Container is lighter than most standard containers.
  • Granger Aerospace Products cargo containers are robust.
  • No aluminum body panels to patch.
  • No aluminum body frames to replace.
  • Lighter weight, less down time and lower repair costs equals lower cost of ownership.
  • Enhanced Threshold.
  • Fewer fasteners to replace.
  • Unique design allows for faster repairs.
  • Less spare parts to keep in stock.
  • Granger Aerospace Products offers alternative solutions for your ULD needs.
  • It is our goal to offer our customer not only lower cost container but a trusted partnership for your company.
  • It’s our goal to offer more choices to our customers
  • Through or focus on technology and research, we are continually making improvements to our design.
  • Our customers save fuel by using robust as well as cost-efficient lightweight containers.
    		•

    LD 3 AKN Technical Specifications

    Technical Specifications
    IATA   C90d
    SAE AS 36100 class   LD-3/AKN
    Granger Aerospace P/N   NAS 3610 (2K2C)
    Base size 1534 x 2438 mm 79.0 in x 60.4 in
    Height 1625 mm 64.0 in
    Roof length 2438 mm 79.0 in
    Max. gross weight 2449 kg 3500 lb
    Internal volume 3.5 cu m 125 cu ft
    External volume 4.7 cu m 166 cu ft
    Door opening 2298 x 1532 mm 53.13 in x 57.75 in
    Tare weight from 118.8 kg 262 lbs.

    LD 3 AKN Ultimate Load Test Video!

    See the forkliftable LD 3 AKN air cargo container successfully complete the FAA's Ultimate Load Testing in the video above!

    LD 3 AKN Side Load Test- 8 Days

    In typical fashion of Granger's commitment to quality and excellence, Granger decided to allow it's newly unveiled, LD-3 Air Freight Container to hang in the side load position, while loaded with 5,283 pounds of sandbags. Watch in the video above, as the air cargo container hangs for 8 days. Coming soon, Granger Aerospace will video the repairs to this container, making it ready for the tarmac all over again!

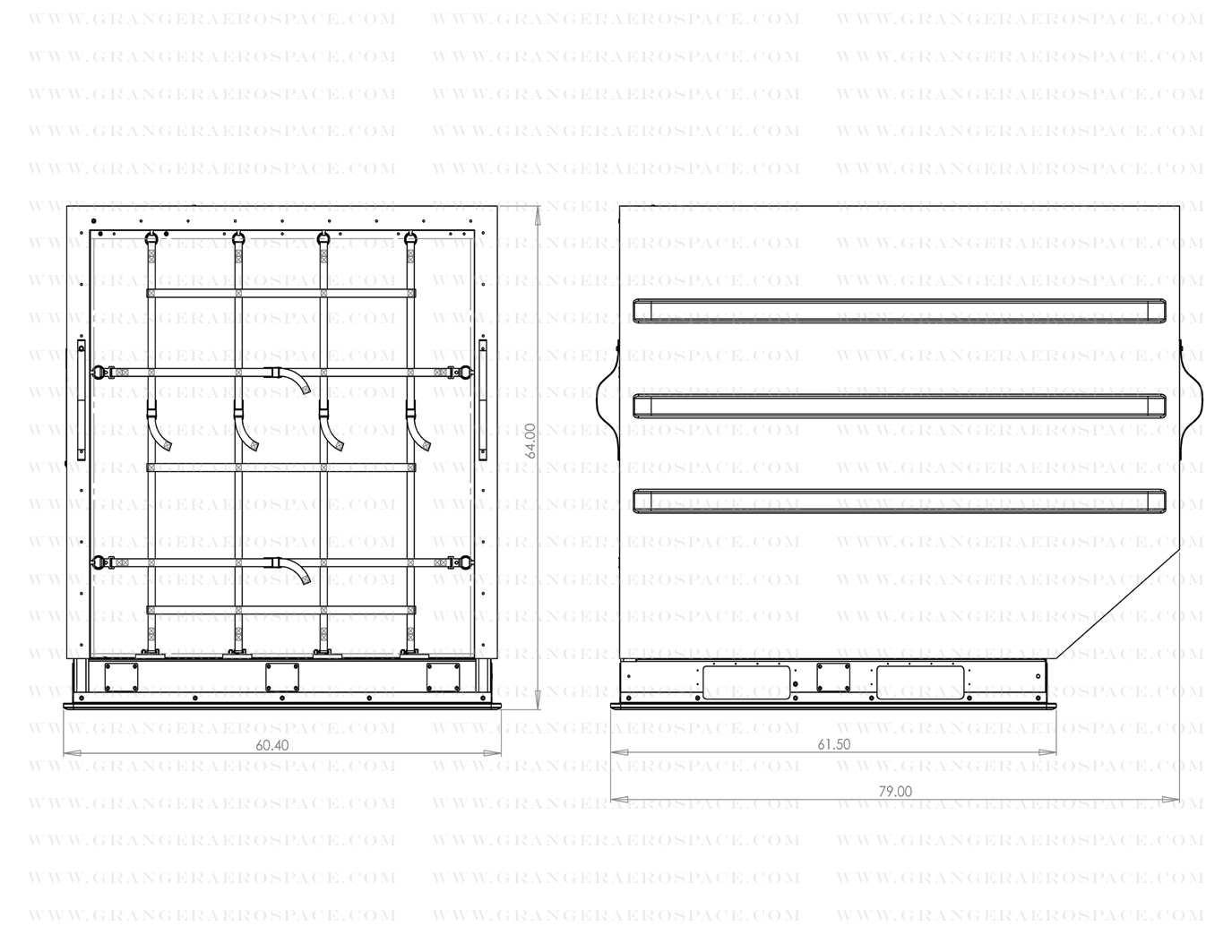

    LD 3 AKN Dimensional Drawings

    Click below to download LD 3 AKN Dimensional PDF
    LD 3 Dimensions, LD 3 Air Cargo Container Dimensions, AKN dimensions

    LD 3 AKE/AKN Information

    Click below to download LD 3 AKN Technical PDF
    LD 3 Specifications, Dimensions, LD 3 Air Cargo Container Dimensions, AKN Dimensions, AKN dimensions
